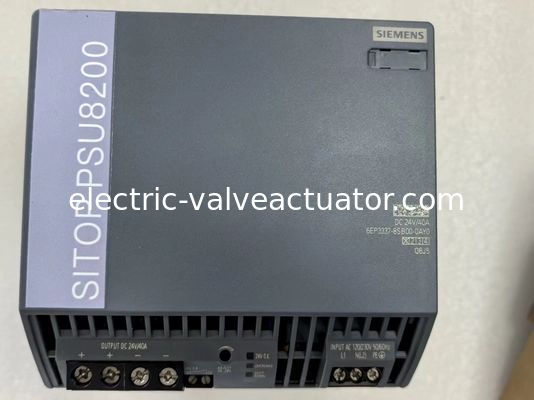

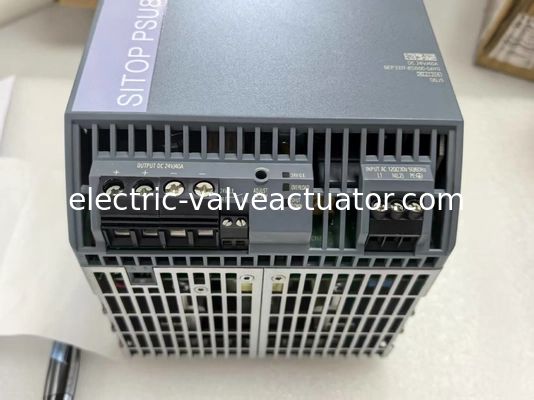

6EP3337-8SB00-0AY0 Siemens Power Module 24V/40A Efficient Power Supply Industrial Grade Reliable

6EP3337-8SB00-0AY0 Siemens Power Module 24V/40A Efficient Power Supply Industrial Grade Reliable

ब्रांड नाम: Siemens
मॉडल संख्या: 6EP3337-8SB00-0AYO
एमओक्यू: 1
कीमत: Negotiations
विस्तृत जानकारी
उत्पत्ति के प्लेस:
जर्मनी
इनपुट:
एकल-चरण एसी (एसी 120/230V) या डीसी (डीसी 88-350V)
उत्पादन:
डीसी 24V/40A (अधिकतम शक्ति 960W)
अनुप्रयोग:
औद्योगिक स्वचालन, डीसीएस सिस्टम, पीएलसी नियंत्रण, यांत्रिक उपकरण बिजली की आपूर्ति, आदि
पैकेजिंग विवरण:

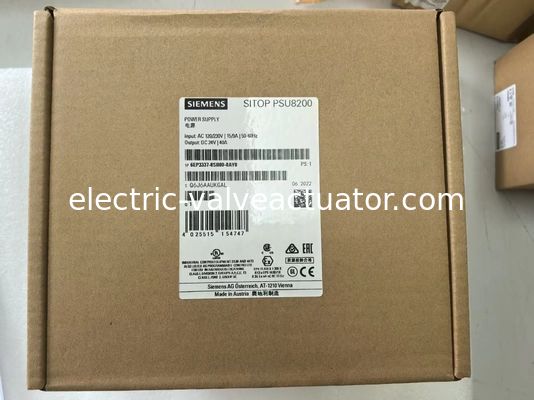

नया मूल बॉक्स
प्रमुखता देना:

Siemens 24V/40A power module

,

industrial grade power supply

,

efficient low voltage protection

उत्पाद का वर्णन
6EP3337-8SB00-0AY0 Siemens Power Module 24V/40A Efficient Power Supply Industrial Grade Reliable
Industrial-grade power module from Siemens' SITOP PSU8200 series, designed for reliable operation in demanding industrial environments.
Product Overview
  • Model: 6EP3337-8SB00-0AY0
  • Series: SITOP PSU8200
  • Input: single-phase AC (AC 120/230V) or DC (DC 88-350V)
  • Output: DC 24V/40A (maximum power 960W)
  • Applications: Industrial automation, DCS systems, PLC control, mechanical equipment power supply
Core Features
  • Wide input voltage range - Supports 85-264V AC or 88-350V DC, adapts to different global power grid standards
  • High efficiency - Conversion efficiency up to 94%, reducing energy consumption and heat generation
  • Power boost function - 3× rated current for 25ms; 1.5× rated current for 5 seconds/minute
  • Modular expansion - Compatible with buffer modules, redundant modules, and DC UPS
  • Industrial grade protection - Operating range: -25°C to +70°C; IP20 protection; cULus, ATEX, GL certified
Technical Parameters
Parameter Specifications
Input voltage 85-264V AC/88-350V DC
Output voltage 24V DC (adjustable to 28V)
Output current 40A (maximum 960W)
Efficiency ≥ 94%
Working temperature -25°C ~ +70°C
Installation method DIN rail installation
Dimensions 70 × 125 × 125mm
Typical Applications
  • PLC control systems (Siemens SIMATIC S7 series)
  • Industrial robots and CNC machine tools
  • Process Automation (DCS)
  • Power systems and transportation equipment
