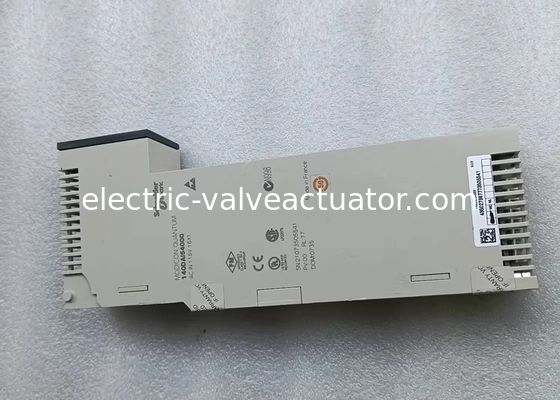

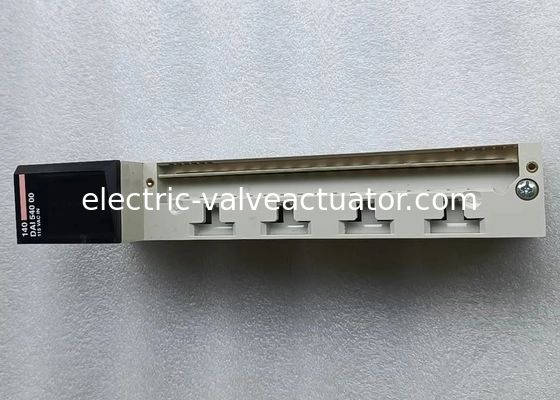

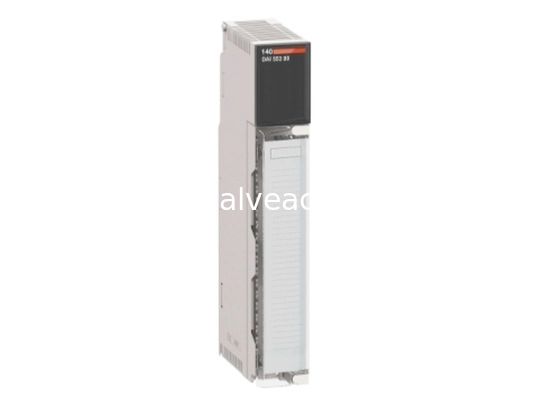

Schneider 140DAI54000 VAC Discrete Input Modules 115 V AC 16 Channels

Schneider 140DAI54000 VAC Discrete Input Modules 115 V AC 16 Channels

ब्रांड नाम: Schneider
मॉडल संख्या: 140DAI54000
एमओक्यू: 1
कीमत: Negotiations
विस्तृत जानकारी
उत्पत्ति के प्लेस:
फ्रांस
प्रकार:
I/O मॉड्यूल
रिसाव वर्तमान:
<= 2.1 मा
DIMENSIONS:
16.3 सेमी*4.5 सेमी*31.2 सेमी
वज़न:
438.0 ग्राम
पैकेजिंग विवरण:
नया मूल बॉक्स
प्रमुखता देना:

Schneider 115V AC input module

,

16-channel discrete input module

,

low voltage protection module with warranty

उत्पाद का वर्णन
Schneider 140DAI54000 VAC Discrete Input Modules 115 V AC 16 Channels
Product Attributes
Attribute Value
Type I/O Modules
Leakage Current <= 2.1 MA
Dimensions 16.3 Cm*4.5 Cm*31.2 Cm
Weight 438.0 G
Product Description

Schneider 140DAI54000 VAC Discrete Input Modules 115 V AC 16 Channels

Detailed Specifications
  • Part Number: 140DAI54000
  • Manufacturer: Schneider Electric
  • Type: I/O Modules
  • Model #: 140-DAI-540-00
  • Warranty: 2 Years
  • Module Format: Standard
  • Product Range: Modicon Quantum automation platform
  • Product/Component Type: VAC discrete input modules
  • Software Compatibility: Concept, ProWORX 32, Unity Pro
  • Number of Discrete Inputs: 16
  • Channel Groups: 16
  • Addressing Requirement: 1 input word
Electrical Specifications:
Discrete Input Voltage: 115 V AC
Input Current: ≤ 13.2 mA at 47...53 Hz / ≤ 11.1 mA at 57...63 Hz
Guaranteed Voltage for State 1: 85...132 V AC at 47...53 Hz / 79...132 V AC at 57...63 Hz
Guaranteed Voltage for State 0: 0...20 V AC at 47...53 Hz / 0...20 V AC at 57...63 Hz
Input Impedance: 14400 Ohms (capacitive) at 47...53 Hz / 12000 Ohms (capacitive) at 57...63 Hz
Network Frequency Limits: 47...63 Hz
Leakage Current: ≤ 2.1 mA
Absolute Maximum Input: 200 V for 1 cycle / 156 V for 10 seconds / 132 V continuously
Performance Specifications:
Response Time: 7.3...12.3 ms (On-Off) / 4.9...0.75 ms per line cycle (Off-On)
Isolation Between Channels: 1780 Vrms for 1 minute
Isolation Between Channels and Bus: 1780 Vrms for 1 minute
Bus Current Requirement: 180 mA
Power Dissipation: ≤ 5.5 W
Indicators:
16 green LEDs (input status)
1 red LED (external fault detected, marked "F")
1 green LED (bus communication active)
Certification:
CE
