| ब्रांड नाम: | Schneider |

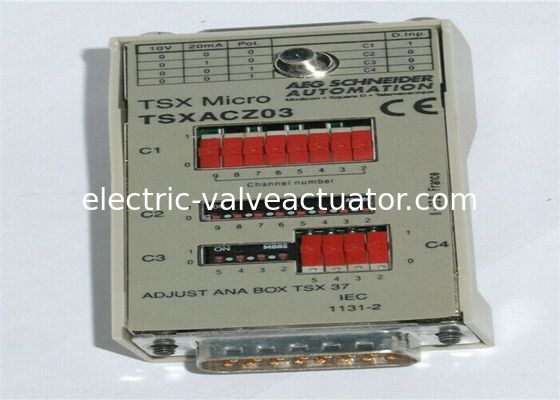

| मॉडल संख्या: | TSXACZ03 |
| एमओक्यू: | 1 |
| कीमत: | Negotiations |
| Type | I/O Module |
|---|---|
| Net Weight | 1 lb |
| Main range of product | Modicon TSX Micro automation platform |
| Product or component type | Modular base controller |
| Complementary number of slots | 3 |
| Integrated connection type | 1 serial link (TER/AUX) Uni-Telway 19.2 kbit/s 1 Modbus Modbus RTU 19.2 kbit/s |
| Realtime clock | With |
| Memory description |
Flash 15 Kwords data Internal RAM 20 Kwords data Internal RAM (with PCMCIA card) 128 Kwords program and data Internal RAM 128 Kwords data storage |
| Maximum size of object areas |
128 %KWi constant words 256 %Mi 1 %MWi internal words |
| Execution time per instruction |
0.13 µs Boolean without PCMCIA card 4.5 µs arithmetic REAL floating without PCMCIA card 0.19 µs Boolean with PCMCIA card 4.5 µs arithmetic REAL floating with PCMCIA card |
| Execution time for 1 Kinstruction |
5.88 100% Boolean without PCMCIA card 0.27 65% Boolean and 35% numerical without PCMCIA card 4 100% Boolean with PCMCIA card 0.266 65% Boolean and 35% numerical with PCMCIA card |
| Application structure | 16 event tasks 1 master task 1 fast task |
| System overhead | 1.6 ms for master task |
| Protection type | Overload protection Short-circuit |
| Total useful secondary power | 16 W |
| Electromagnetic compatibility |
Electrostatic discharge conforming to IEC 1000-4-2 level 3 Electromagnetic field immunity test conforming to IEC 1000-4-3 level 3 Resistance to fast transient conforming to IEC 1000-4-4 level 3 Immunity to impulse waves conforming to IEC 1000-4-5 Damped oscillatory wave conforming to IEC 1000-4-12 Immunity to electromagnetic interference conforming to IEC 61131-2 |
| Environment ambient air temperature for operation | 0…60 °C |
| Ambient air temperature for storage | -25…70 °C |
| Relative humidity | 10…95% without condensation for operation 5…95% without condensation for operation |
| Operating altitude | 0...2000 m |
| Dimensions (W x H x D) | 341.4 mm × 151 mm × 152 mm |
| Net weight | 1.72 kg |
| REACh Regulation | REACh Declaration |
| EU RoHS Directive |
Pro-active compliance (Product out of EU RoHS legal scope) EU RoHS Declaration |
| Mercury free | Yes |
| RoHS exemption information | Yes |
| China RoHS Regulation | China RoHS declaration |
