| ब्रांड नाम: | Schneider |
| मॉडल संख्या: | TSXAEY810 |
| एमओक्यू: | 1 |
| कीमत: | Negotiations |
| Attribute | Value |
|---|---|
| Range Of Product | Modicon Premium |
| Country Of Origin | France |
| Brand | Schneider |
| Part Number | TSXAEY810 |
| Number Of Inputs | 8 |
| Net Weight | 0.33 Kg |

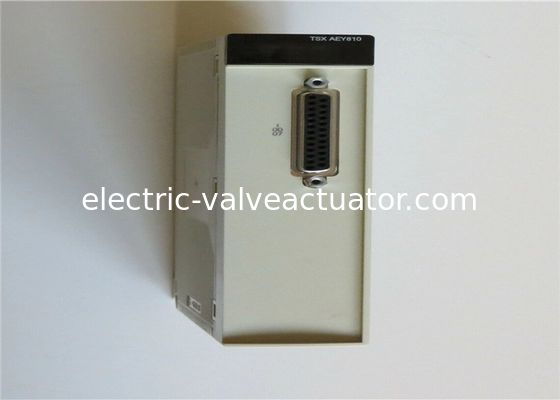

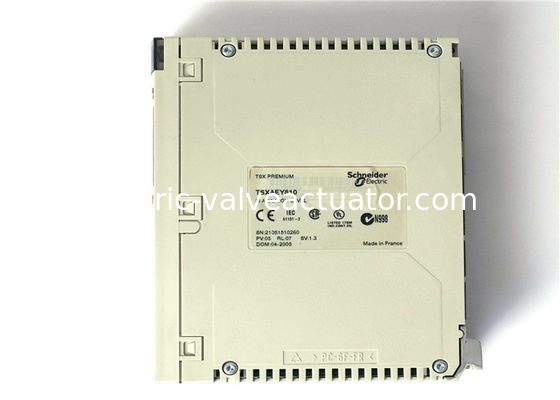

The Schneider Electric TSXAEY810 is an isolated analog input module with 8 multirange inputs, designed for the Modicon Premium automation platform.
| Product Type | Analog input module |
| Input Level | Low level |
| Analog Input Type |
|
| Analog/Digital Conversion | 16 bits |
| Complementary Nominal Read Cycle Time | 29.7 ms |
| Fast Read Cycle Time | 3.3 ms + 3.3 ms x number of channels used |
| Isolation Between Channels and Bus | 1000 Vrms |
| Isolation Between Channels and Ground | 1000 Vrms |
| Isolation Between Channels | +/- 200 V |
| Electrical Connection | 1 connector SUB-D 25 |
| Current Consumption | 475 mA at 5 V DC |
| Module Format | Standard |
| Standards | IEC 1131 |
| Product Certifications | ABS, RINA, LR, BV, DNV, GL, RMRS |
| Operating Temperature | 0...60 °C |
| Storage Temperature | -25...70 °C |
| Relative Humidity | 10...95% without condensation (operation) 5...95% without condensation (storage) |
| Operating Altitude | 0...2000 m |
| IP Degree of Protection | IP20 |
Contractual Warranty: 18 months
Terms: We ship worldwide and accept T/T and PayPal. All items are subject to availability and passing our QA testing and inspection.
