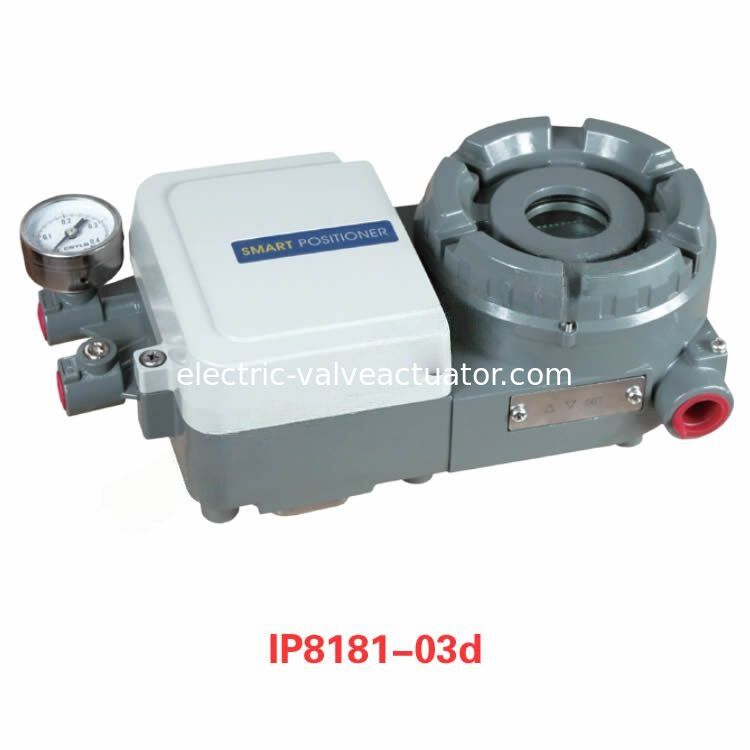

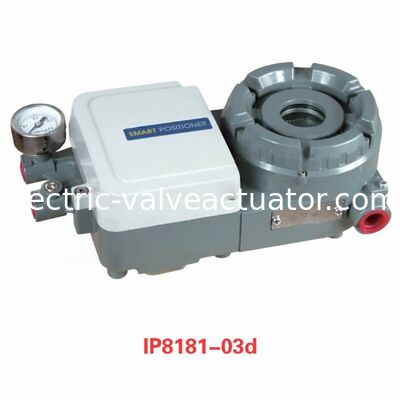

| Parameter | IP8081/IP8181 Single Acting | IP8081/IP8181 Double Acting |
|---|---|---|
| Basic Error | ±1% | ±2% |
| Return Difference | 1% | 2% |
| Dead Zone | 0.4% | 0.8% |
| Rated Stroke | 0~(10~100) mm [Angular stroke 0°~50°~90°] | 0~(10~100) mm [Angular stroke 0°~50°~90°] |
| Minimum Operating Current | 3.8mA.DC | 3.8mA.DC |
| Voltage | 9~36V.DC | 9~36V.DC |
| Maximum Supply Power | 0.2W | 0.2W |
| Gas Source Pressure | 0.14-0.7MPa | 0.14-0.7MPa |
| Input Signal | 4~20mA.DC (conventional two-wire system) | 4~20mA.DC (conventional two-wire system) |
| Output Pressure | 0.02-0.5MPa | 0.02-0.5MPa |
| Gas Consumption | 5L/min (supply 0.14MPa) | 11L/min (supply 0.7MPa) |
| Output Characteristics | Linear | |
| Ambient Temperature | -20℃~+60℃ for normal temperature type | |
| Relative Humidity | 5%~100% | |
| Explosion Proof Type (Grade) | Exd Ⅱ C T6 Gb, Ex tb Ⅲ C T80℃ Db | |
| Input Impedance | 4~20mA.DC/500Ω (20mA) | |
| Gas Source Interface | NPT1/4 (conventional), G1/4 | |
| Power Interface | NPT1/2 (regular), G1/2, M20×1.5 | |
| Exterior Material | Aluminum Alloy Spray Coating Process Treatment | |
| Dimensions | Explosion proof: 266×145×110mm Common: 218×162×106mm |
Explosion proof: 266×145×110mm Common: 218×162×106mm |
| Weight | Explosion proof: ~3.3kg Common: ~2.3kg |
Explosion proof: ~3.3kg Common: ~2.3kg |
