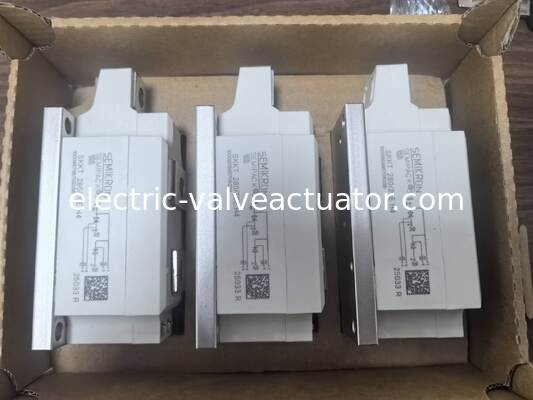

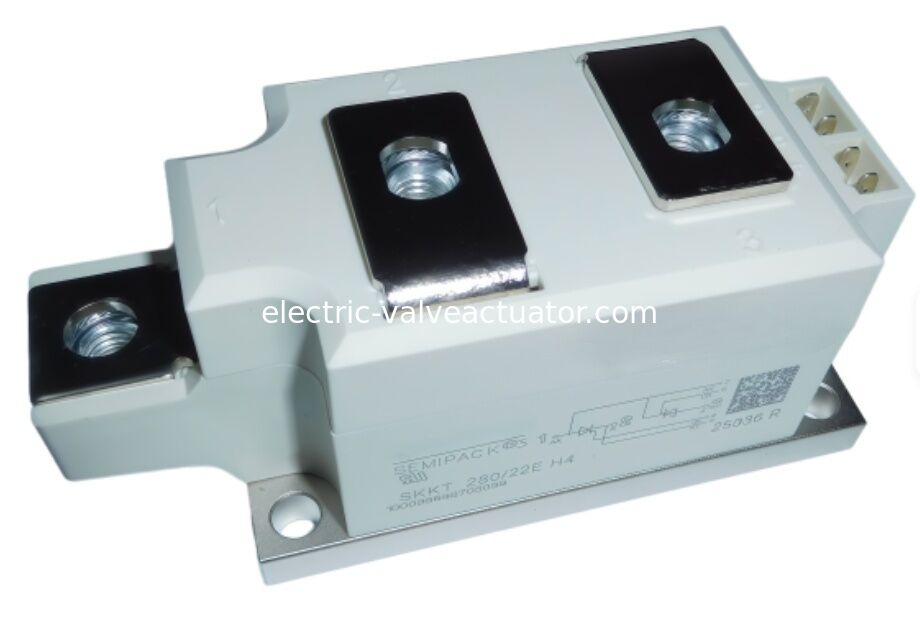

SEMIKRON SKKT280/20E H4 Thyristor Module 2100V 280A Dual SCR Power Module

SEMIKRON SKKT280/20E H4 Thyristor Module 2100V 280A Dual SCR Power Module

ब्रांड नाम: SEMIKRON
मॉडल संख्या: SKKT280/20E
एमओक्यू: 1
कीमत: बातचीत योग्य
विस्तृत जानकारी
उत्पत्ति के प्लेस:
जर्मनी
औसत चालन धारा:
280 ए (टीसी = 85 डिग्री सेल्सियस)
आरएमएस चालन धारा;:
लगभग 440-460 ए
उमड़ती लहरें:
लगभग 6000 ए (50 हर्ट्ज़ अर्ध तरंग)
गेट ट्रिगर करंट:
150-200 एमए
गेट ट्रिगर वोल्टेज:
2-3 वी
वर्तमान बनाए रखें:
150-300 एमए
पैकेजिंग विवरण:
नया मूल बॉक्स
उत्पाद का वर्णन
SEMIKRON SKKT280/20E H4 Thyristor Module 2100V 280A Dual SCR Power Module
The SEMIKRON SKKT280/20E H4 is a high-performance dual SCR power thyristor module engineered to deliver reliable power control in demanding industrial applications. As a premium product from SEMIKRON, a global leader in power electronics, this module combines robust construction with exceptional electrical performance, making it an ideal choice for medium to high-power systems.
Key Specifications
Voltage Rating 2100V Maximum
Current Capacity 280A Continuous (at 79°C case temperature)
Temperature Range -40°C to 125°C (junction and storage)
Surge Overload Capacity 8500A for 10ms at 25°C
Insulation Voltage 4800V AC for 1s
Design Features
  • Two independent thyristors in compact SEMIPACK® 3 housing
  • Aluminum nitride ceramic insulated metal baseplate for efficient heat transfer
  • Precious metal pressure contacts for long-term reliability
  • Amplifying gate for quick and consistent triggering
  • Low thermal impedance for minimized power loss
  • UL-recognized design (File No. E63532)
Typical Applications
  • DC motor control for machine tools
  • AC motor starters
  • Temperature control for ovens and chemical processes
  • Professional light dimming in studios and theaters
  • Power regulators and welding equipment
Compact, durable, and easy to integrate, the SEMIKRON SKKT280/20E H4 dual SCR module delivers consistent, efficient power control, backed by SEMIKRON's renowned quality and reliability—perfect for industrial systems that demand uncompromising performance.
SEMIKRON SKKT280/20E H4 Thyristor Module 2100V 280A Dual SCR Power Module 0
