OCL-371 3-Phase VFD Output Reactor | Reduce Motor Noise & Protect Inverter from Harmonics | 380V/660V

OCL-371 3-Phase VFD Output Reactor | Reduce Motor Noise & Protect Inverter from Harmonics | 380V/660V

ब्रांड नाम: OEM
मॉडल संख्या: ओसीएल-371
एमओक्यू: 1
कीमत: बातचीत योग्य
विस्तृत जानकारी
उत्पत्ति के प्लेस:
चीन
प्रतिक्रिया गुणांक:
0.01
रेटेड आवृत्ति:
40 हर्ट्ज
शॉर्ट सर्किट क्लोजिंग करंट:
1 क
पीक करंट झेलता है:
1.3ए
वर्तमान मूल्यांकित:
20ए
कार्यशील वोल्टेज:
450V
इन्सुलेशन वोल्टेज:
3000 वी
सिस्टम का रेटेड वोल्टेज:
450V
कुल बिजली की खपत:
1 माह
मुख्य सर्किट वोल्टेज:
440V
पैकेजिंग विवरण:
नया मूल बॉक्स
उत्पाद का वर्णन

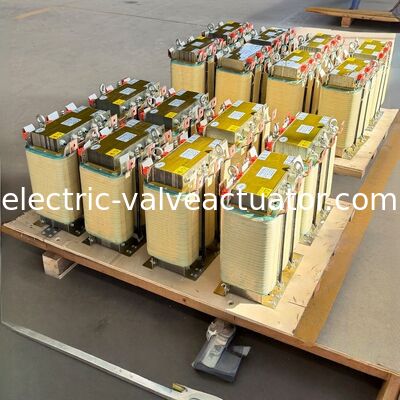

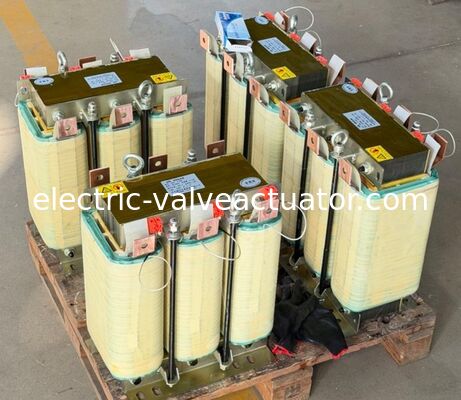

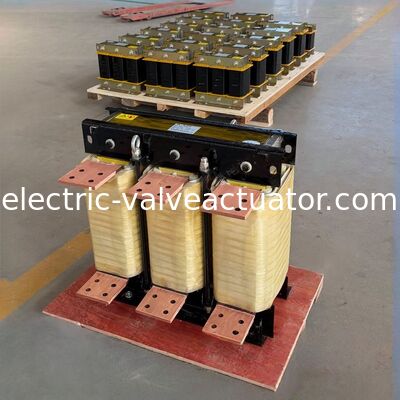

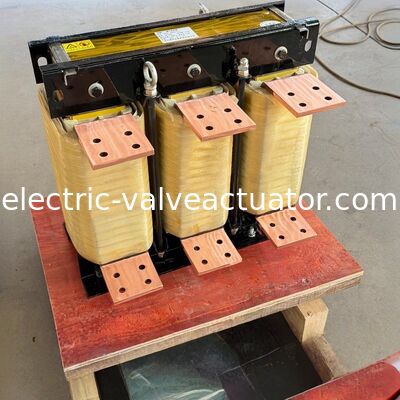

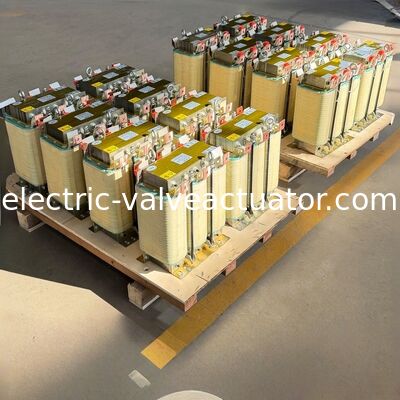

OCL-371 3-Phase VFD Output Reactor
The OCL-371 3-Phase VFD Output Reactor is a high-performance component designed to optimize VFD system reliability and efficiency. This industrial-grade reactor reduces motor noise and shields inverters from harmful harmonic distortions, extending equipment service life and ensuring stable operation in demanding industrial environments.
Key Benefits
  • Reduces motor noise by filtering high-frequency harmonics in output current
  • Protects inverters from harmonic distortions and voltage spikes
  • Extends equipment lifespan and prevents costly downtime
  • Operates below 50dB at 1m for minimal additional system noise
  • Compensates for long cable runs to protect motor insulation
Technical Specifications
  • Compatible with 380V and 660V three-phase systems
  • 3kV/min withstand voltage rating
  • H-class insulation for harsh industrial conditions
  • Compact three-phase three-column structure
  • Copper windings with laminated iron core
  • Stable operation at 1.35x rated current
  • Low temperature rise and power loss
Applications
Ideal for pumps, fans, conveyors, and other motor-driven equipment. Compatible with major VFD brands and adheres to international standards for quality assurance.
