| ब्रांड नाम: | Zhong He |
| मॉडल संख्या: | दप -2 |
| एमओक्यू: | 1 |
| कीमत: | बातचीत योग्य |

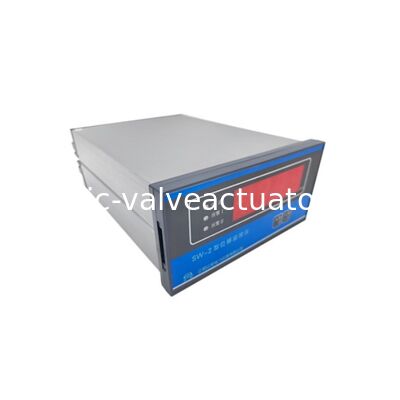

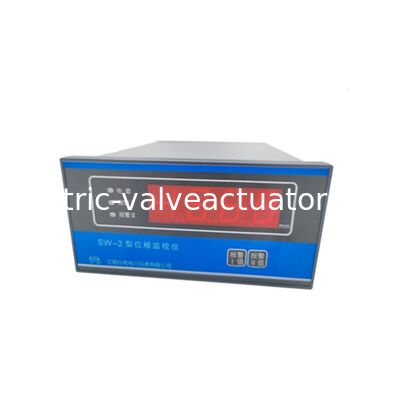

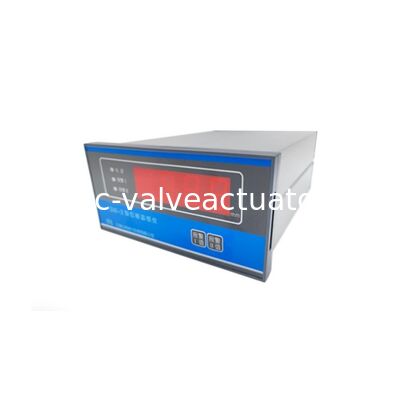

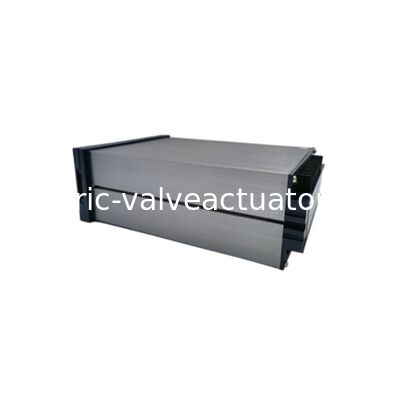

The Zhong He SW-2 Displacement Monitor is a highly reliable monitoring and protection instrument designed for precision measurement applications. This system combines advanced digital gauge technology with LVDT sensors to deliver exceptional accuracy and performance in industrial environments.
During measurement operations, the system provides current output proportional to displacement, enabling seamless integration with DCS, PLC systems, and paperless recorders. The instrument features two independently adjustable alarm settings that trigger relay switch contact outputs when displacement exceeds preset values.
Engineered for demanding industrial applications, this product offers high precision, stable performance, strong anti-interference capability, high reliability, and easy installation. It is widely applicable across power generation, machinery, chemical processing, and metallurgical industries.
| Parameter | Specification |
|---|---|
| Input Signals | TDZ-1, TD-1, TD-2, UT-81 series linear differential transformer displacement sensors (LVDT) |
| Display | Three and a half digit LED digital display; Resolution: 0.1mm or 1mm |
| Measurement Range | 0~1000mm (specific to connected sensor) |
| Current Output | Active DC 4~20 mA (±1.0% full scale accuracy, 500Ω max load) Active DC 0~10mA (±1.0% full scale accuracy, 1kΩ max load) |
| Alarm Settings | Adjustable within full measurement range |
| Alarm Output | Relay switch output (normally open contact) Capacity: AC250V/2A, DC28V/2A |
| Alarm Delay | 0.1s, 1s, 3s (default: 1s, factory set) |
| Operating Environment | Temperature: 0~50℃ Storage: -10~60℃ Humidity: 20~90% RH (non-condensing) No corrosive or strong magnetic fields |
| Power Supply | (85~265) VAC, 50Hz; Power consumption <10W |
| Dimensions | 160mm (W) × 80mm (H) × 225mm (D) |
| Installation | Cutout: 152mm × 76mm |
