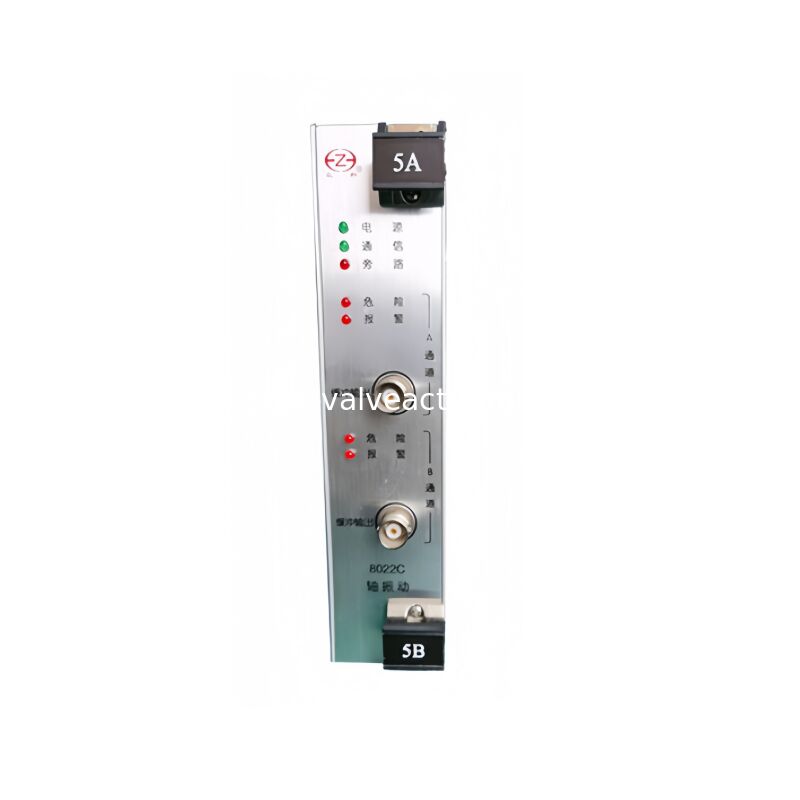

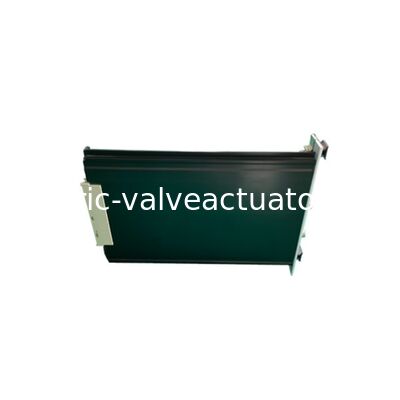

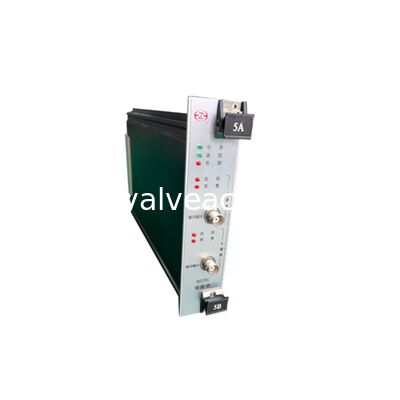

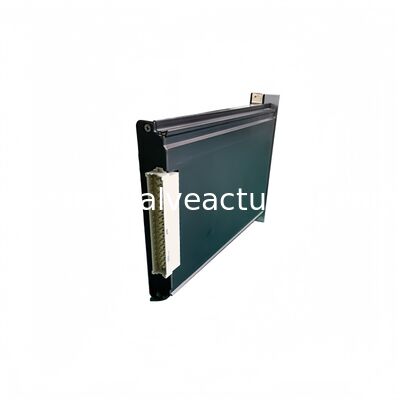

Zhong He 8022C Series Rotating Machinery Protection System | Shaft Vibration Monitoring Solution

ब्रांड नाम:	Zhong He
मॉडल संख्या:	8022सी
एमओक्यू:	1
कीमत:	बातचीत योग्य

विस्तृत जानकारी

उत्पाद का वर्णन

विस्तृत जानकारी

उत्पत्ति के प्लेस:

चीन

माप श्रेणी:

0-200μm

मापन सटीकता:

±1%

अनुरूप उत्पादन:

4 ~ 20ma

रेटेड आवृत्ति:

50 हर्ट्ज

कुल बिजली की खपत:

1 माह

मूल्यांकित शक्ति:

160 किलोवाट

पैकेजिंग विवरण:

नया मूल बॉक्स

उत्पाद का वर्णन

Zhong He 8022C Series Rotating Machinery Protection System | Shaft Vibration Monitoring Solution

System Overview

The Zhonghe 8000 series rotating machinery protection system is a comprehensive modular monitoring and protection solution specifically designed for shaft vibration monitoring, protecting key rotating equipment in power generation, petrochemicals, metallurgy, and heavy industry applications.

This integrated system design complies with API 670 standards, providing real-time, high-precision vibration data, active fault warning, and reliable safety interlocking to prevent catastrophic equipment failures and minimize unplanned downtime.

Core Technology & Design

The shaft vibration monitoring solution integrates advanced eddy current sensor technology with a 32-bit embedded industrial processor, accurately measuring radial and axial shaft vibration, eccentricity, and other key parameters throughout the entire operating range of rotating machinery.

Modular design allows for flexible configuration of monitoring modules, including dual channel shaft vibration modules, velocity modules, and displacement modules, which can be combined according to on-site monitoring needs to form a practical and efficient protection system.

Protection Features

Multi-level alarm and trip settings for comprehensive protection
Timely warning signals and emergency stop relays when vibration exceeds safety thresholds
Prevention of rotor friction, bearing damage, and equipment failure
Comprehensive self-diagnostic functions for real-time fault detection
Enhanced operational safety and reduced maintenance costs

Installation & Integration

The 8000 series adopts a compact and standardized EIA chassis design, supporting DIN rail or plug-in installation for easy integration, hot-swappable maintenance, and system expansion.

Provides isolated 4-20mA analog output and RS-485 communication interface with Modbus RTU protocol, enabling seamless integration with DCS, PLC systems, and central monitoring platforms for remote data access and centralized control.

Ideal Applications

The Zhonghe 8000 series is an ideal choice for steam turbines, gas turbines, compressors, fans, pumps, and other large rotating equipment, combining precision, durability, and flexibility.

This system not only provides reliable shaft vibration monitoring but also serves as an overall protection solution for rotating machinery, extending equipment life, ensuring continuous production, and providing an economical and efficient alternative solution for imported systems.
