Boiler Ignition System High Energy Ignitor High Performance Ignition System Flame Monitoring

Boiler Ignition System High Energy Ignitor High Performance Ignition System Flame Monitoring

ब्रांड नाम:	OEM
मॉडल संख्या:	एक्सडीजेड-1
एमओक्यू:	1 सेट
भुगतान की शर्तें:	टी/टी
आपूर्ति करने की क्षमता:	200

विस्तृत जानकारी

उत्पाद का वर्णन

विस्तृत जानकारी

उत्पत्ति के प्लेस:

चीन

वोल्टेज:

2500 वी

ऊर्जा:

20जे

चिंगारी:

12-14times /s

चौखटा का आकर:

300*200*120

धागा:

M18*1.0 M18*1.5 M27*1.5

तापमान:

1300 ℃

रॉड डाय:

Φ12 、 φ16 φ φ18

पैकेजिंग विवरण:

लकड़ी के बक्से की पैकिंग

आपूर्ति की क्षमता:

200

प्रमुखता देना:

high energy boiler ignitor

flame monitoring ignition system

high performance boiler ignition

उत्पाद का वर्णन

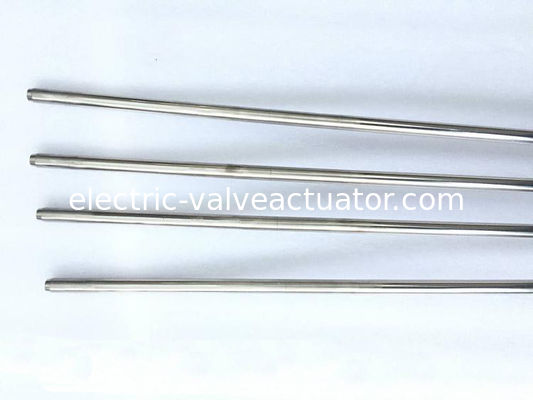

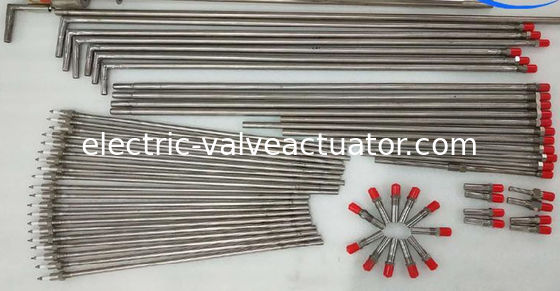

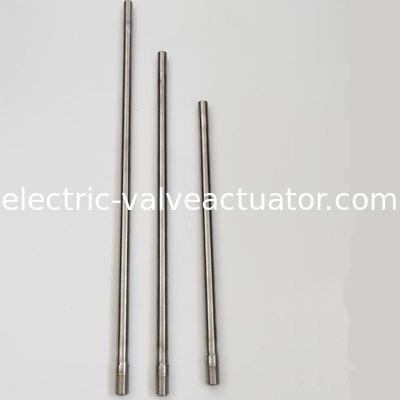

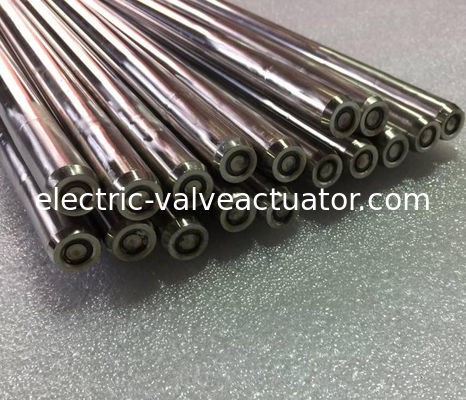

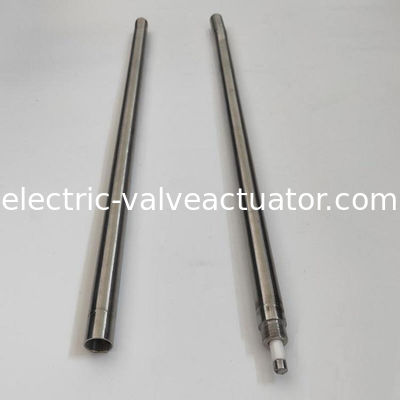

Boiler Ignition System High Energy Ignitor

High Performance Ignition System with Flame Monitoring

Portable High Performance Ignition System Heat Box for XDH High-Energy Ignition Device Assembly. Compatible with DC 12V and AC 220V power sources.

Product Models and Series

Sr.	Model	Description
1	XDZ-1-l/d	Standard type hard rod high energy ignition gun
2	XDZ-1-l/d B	Standard type hard rod explosion-proof high-energy igniting gun
3	XDZ-1-l/d K	Standard type hard gun handle high energy ignition gun
4	XDZ-1R-l/d	Standard type soft rod high energy ignition gun
5	XDZ-1R-l/d B	Standard type soft rod explosion-proof high-energy igniting gun
6	XDZ-2-l/d	Non standard hard rod high energy ignition gun
7	XDZ-2-l/d B	Non standard hard rod explosion-proof high-energy igniting gun
8	XDZ-2R-l/d	Non standard soft rod high energy ignition gun
9	XDZ-2R-l/d B	Non standard soft rod explosion-proof high-energy igniting gun
10	XDZ-3-l/d	Special electric nozzle high-energy igniting gun
11	XDZ-3-l/d B	Explosion proof special electric nozzle high-energy igniting gun
12	XDZ-4-l/d B	The hard rod high clearance point guns

Note:
① In the table type code "l" is igniting gun length, in unit mm
② In the table "d" is igniting gun diameter, available in 14mm, 16mm, 18mm series
③ Custom design and production available according to user requirements

Performance Parameters

Parameter Name	Unit	Data
Starting ignition voltage	VDC	600～1400
Center electrode resistance	Ω	≤0.1
Firing end long-term temperature	℃	≤800
Firing end short-time (<5min) temperature resistance	℃	1250
