Hua Heng HY-V201 Vibration and Temperature Monitor with 0-500 μm Amplitude 4-20mA Current Output and LED Display for Industrial Use

Hua Heng HY-V201 Vibration and Temperature Monitor with 0-500 μm Amplitude 4-20mA Current Output and LED Display for Industrial Use

ब्रांड नाम: Hua Heng
मॉडल संख्या: HY-V201
एमओक्यू: 1
कीमत: बातचीत योग्य
विस्तृत जानकारी
उत्पत्ति के प्लेस:
चीन
पैकेजिंग विवरण:
नया मूल बॉक्स
प्रमुखता देना:

0-500 μm Amplitude Vibration and Temperature Monitor

,

4-20mA Current Output Dual Parameter Monitor

,

LED Display Industrial Monitor

उत्पाद का वर्णन

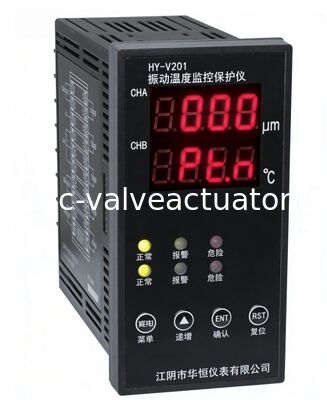

Hua Heng HY-V201 Vibration and Temperature Monitor
Dual Parameter Industrial Monitoring Solution

The HY-V201 is a professional-grade dual parameter monitor designed for industrial applications, providing simultaneous vibration and temperature monitoring with high precision and reliability.

Measurement Range:
Amplitude: 0-500 μm (peak to peak), Intensity: 0-50mm/s (effective value), Temperature: -100~400.0℃
Input Signal:
Equipped with VS-201 vibration temperature combination sensor
Measurement Accuracy:
Level 0.5, linear error ≤±0.5%
Display Mode:
LED display
Technical Specifications
Parameter Specification
Signal Output - Current 4-20mA, load resistance ≤850Ω
Signal Output - Switching DC 27V/2A or AC250V/5A
Environmental Temperature -40~65℃
Relative Humidity ≤95% (non-condensing)
Power Supply Voltage AC 85V~265V or DC 100V~360V
Installation & Dimensions
  • Installation Method: Perforated disc installation (vertical)
  • Dimensions: Width 48mm, Height 96mm, Depth 110mm
  • Hole Size: Width (45+0.5mm) * Height (92+0.5mm)
Hua Heng HY-V201 Vibration and Temperature Monitor with 0-500 μm Amplitude 4-20mA Current Output and LED Display for Industrial Use 0
