Phoenix QUINT4-pS/1AC/24DC/5 2904600 power module, single-phase AC input, 24V DC output, 5W

Phoenix QUINT4-pS/1AC/24DC/5 2904600 power module, single-phase AC input, 24V DC output, 5W

ब्रांड नाम: Phoenix
मॉडल संख्या: 2904600
एमओक्यू: 1
कीमत: Negotiations
विस्तृत जानकारी
उत्पत्ति के प्लेस:
जर्मनी
प्लेज डे टेंशन नॉमिनेल डी'एंट्री:
100 वी एसी ... 240 वी एसी
सांत्वना नाममात्र:
163 वी.ए
एपल की सीमा:
14 ए (à 1 एमएस)
तनाव दे सॉर्टी नाममात्र:
24 वी डीसी
कूरेंट नॉमिनल डी सॉर्टी (आईएन):
5 ए
पैकेजिंग विवरण:
नया मूल बॉक्स
प्रमुखता देना:

Phoenix QUINT4 power module 24V DC

,

single-phase AC input power supply

,

5W ESP controller power module

उत्पाद का वर्णन

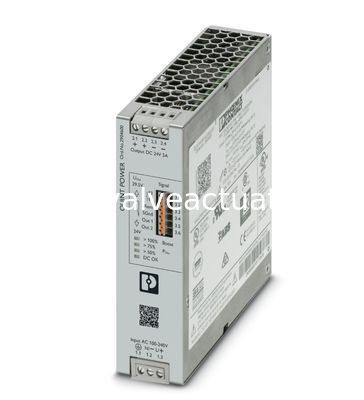

Phoenix QUINT4-pS/1AC/24DC/5 2904600 power module, single-phase AC input, 24V DC output, 5W
Phoenix QUINT4-pS/1AC/24DC/5 2904600 power module, single-phase AC input, 24V DC output, 5W 0 Phoenix QUINT4-pS/1AC/24DC/5 2904600 power module, single-phase AC input, 24V DC output, 5W 1

Phoenix QUINT4-pS/1AC/24DC/5 (Order No. 2904600) is a compact, high-performance power module engineered for industrial applications. Designed with single-phase AC input compatibility, it efficiently converts alternating current to a stable 24V DC output, delivering 5W of reliable power.

This module is optimized for powering low-energy industrial components such as sensors, small controllers, and monitoring devices. Built with Phoenix's renowned durability, it features robust protection against overloads, short circuits, and voltage fluctuations, ensuring consistent operation even in harsh industrial environments.

Its space-saving design allows for easy integration into control cabinets, making it an ideal choice for applications where space and energy efficiency are critical.
