Phoenix QUINT-PS/1AC/24DC/5 2866750 power module 24V DC 5A

Phoenix QUINT-PS/1AC/24DC/5 2866750 power module 24V DC 5A

ब्रांड नाम: Phoenix
मॉडल संख्या: 2866763
एमओक्यू: 1
कीमत: Negotiations
विस्तृत जानकारी
उत्पत्ति के प्लेस:
जर्मनी
प्लेज डे टेंशन डी'एंट्री:
85 वी एसी...264 वी एसी
प्लेज डे टेंशन नॉमिनेल डी'एंट्री:
100 वी एसी ... 240 वी एसी
चोक डे कूरेंट डी'एपेल:
<15 ए
प्लेज डी फ्रीक्वेंसी ए.सी:
45 हर्ट्ज ... 65 हर्ट्ज
सांत्वना नाममात्र:
145 वी.ए
तनाव दे सॉर्टी नाममात्र:
24 वी डीसी ± 1 %
पुइसेंस डे सॉर्टी:
120 डब्ल्यू
अधिकतम माध्यम से शक्ति का क्षय:
3 डब्ल्यू
पैकेजिंग विवरण:
नया मूल बॉक्स
प्रमुखता देना:

Phoenix QUINT-PS power module 24V DC

,

ESP Controller power module 5A

,

24V DC power module with warranty

उत्पाद का वर्णन

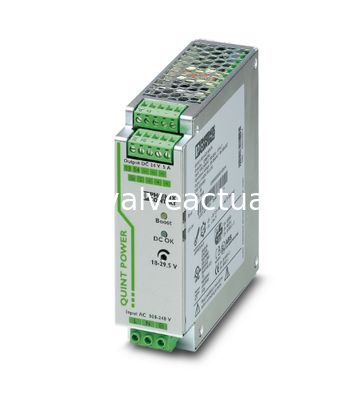

Phoenix QUINT-PS/1AC/24DC/5 2866750 power module 24V DC 5A
Phoenix QUINT-PS/1AC/24DC/5 2866750 power module 24V DC 5A 0 Phoenix QUINT-PS/1AC/24DC/5 2866750 power module 24V DC 5A 1
Product Overview
Phoenix QUINT-PS/1AC/24DC/5 (Order No. 2866750) is a precision-engineered industrial power module, converting 1-phase AC input to a steady 24V DC output with a 5A rated current. Built to meet rigorous industrial standards, it delivers low-ripple power to safeguard sensitive automation components, ensuring uninterrupted operation in demanding environments. Its robust construction and wide temperature tolerance make it a reliable choice for factory automation, machinery, and control systems.
Key Features
  • Input: 1-phase AC
  • Output: 24V DC at 5A
  • Industrial-grade reliability
  • Low-ripple power output
  • Wide temperature tolerance
  • Robust construction for demanding environments
  • Ideal for factory automation and control systems
