| ब्रांड नाम: | ABB |
| मॉडल संख्या: | 3BSE049110R1 CI869 |
| एमओक्यू: | 1 |
| कीमत: | Negotiations |

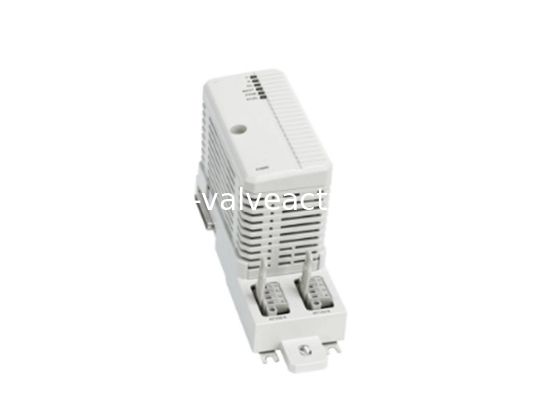

The CI869 is an AC 800M communication interface that connects to the AF 100 field bus through the twisted pair (TWP). The CI869 expansion unit contains the CEX-Bus logic, a communication unit, and a DC/DC converter that supplies the required voltage from +24 V supply through the CEX-Bus. The CI869 can be configured for both redundant cables and redundant communication interfaces.
The CI869 communication interface attached to the AC 800M controller provides connectivity to other AC 800M, AC 160 or a connectivity server over AF 100. An AC 800M controller with the communication interface CI869 behaves as an AF 100 station, receiving data from other AF 100 stations/devices. The CI869 has integrated twisted pair modems. CI869 can also be used in an AC 800M High Integrity system.
| Protocol | ABB's Advant Fieldbus 100 |
| Article number | 3BSE049110R1 |
| Master or slave | Slave |
| Transmission speed | 1.5 Mbit/s |
| Line redundancy | Yes |
| Module redundancy | Yes |
| Hot Swap | Yes |
| Used together with HI Controller | Yes |
| Max units on CEX bus | 12 |
| Connector | Twisted Pair (TWP) |
| 24 V consumption typ. | typ 160 mA |
| Temperature, Operating | 55 °C |
| Protection class | IP20 according to EN60529, IEC 529 |
| CE-marking | Yes |
| RoHS compliance | - |
| WEEE compliance | DIRECTIVE/2012/19/EU |
| Height | 185 mm (7.3 in.) |
| Width | 59 mm (2.3 in.) |
| Depth | 127.5 mm (5.0 in.) |
| Weight (including base) | 700 g (1.5 lbs) |
