7 Modules Max 24VDC FPG-C32T2H PLC Programmable Logic Controller Panasonic

Name: 7 Modules Max 24VDC FPG-C32T2H PLC Programmable Logic Controller Panasonic
Brand: Hontai Machinery and equipment (HK) Co. ltd
SKU: FPG-C32T2H
Price: 210.00 USD
Availability: InStock

ब्रांड नाम:	Panasonic
मॉडल संख्या:	FPG-C32T2H
एमओक्यू:	1
कीमत:	बातचीत योग्य
भुगतान की शर्तें:	एल/सी, डी/ए, डी/पी, टी/टी, वेस्टर्न यूनियन, मनीग्राम
आपूर्ति करने की क्षमता:	स्टॉक में

विस्तृत जानकारी

उत्पाद का वर्णन

विस्तृत जानकारी

उत्पत्ति के प्लेस:

जापान

प्रमाणन:

पैकेजिंग विवरण:

नया मूल बॉक्स

आपूर्ति की क्षमता:

स्टॉक में

प्रमुखता देना:

24VDC Programmable Logic Controller

PLC Programmable Logic Controller

24VDC FPG-C32T2H PLC

उत्पाद का वर्णन

Detailed Product Description

Brand:	Panasonic	Model Number:	FPG-C32T2H
Country Of Origin:	Japan	Type:	PLC Programmable Logic Controller
Number Of Outputs And Type:	16 - Pulse (4), PWM (4), Solid State (8)	Expandable:	3 Modules Max
Voltage - Supply:	24VDC	Operating Temperature:	0°C ~ 55°C
Highlight:	ethernet plc controllers , industrial automation using plc

7 Modules Max 24VDC FPG-C32T2H PLC Programmable Logic Controller Panasonic

Detailed Product Description

Categories	Industrial Automation and Controls
Categories	Controllers - Programmable Logic (PLC)
Manufacturer	Panasonic Industrial Automation Sales
Series	FP Sigma
Part Status	Active
Number of Inputs and Type	16 - Digital
Number of Outputs and Type	16 - Pulse (2), PWM (2), Solid State (12)
Expandable	7 Modules Max
Voltage - Supply	24VDC
Display Type	No Display
Number of Characters Per Row	-
Communications	Option Cards Available
Memory Size	32K Words
Mounting Type	DIN Rail
Features	-
Operating Temperature	0°C ~ 55°C
Ingress Protection	-
Software	FPWINPRO7
Approvals	CE, cULus
Weight	0.265 lb (120.2 g)

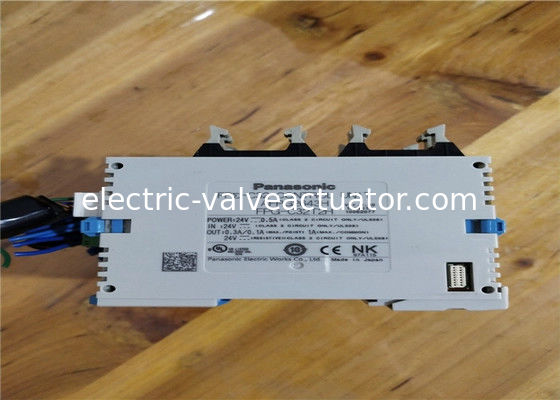

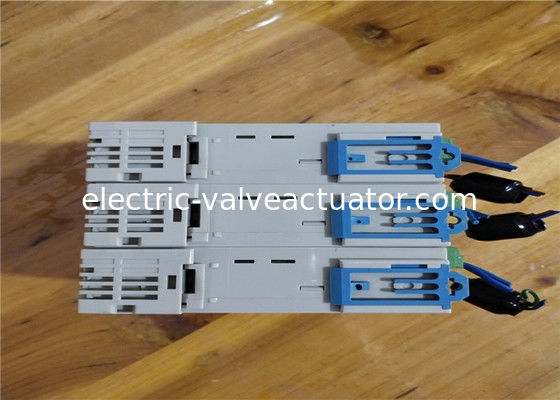

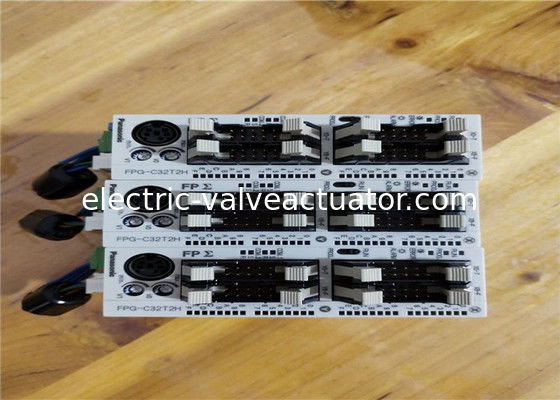

Panasonic PLC FPG-C32T2H

Extended Product Type : FP-Sigma series
Product ID: FPG-C32T2H
PAnasonic Type Designation : FP-Sigma series

Features

Large program memory (32k commands)
Large data memory (32k words)
Efficient motion control functions
– 50kHz fast counter input
– 100kHz pulse output
– convenient positioning commands
Fastest processing time, 0.32µs/basic command
Real-time clock
Compact design (W 30 x H 90 x D 60mm)
Top communication performance thanks to 3 possible serial interfaces on the CPU
MODBUS RTU Master/Slave standard in all CPUs

Specification

Number of inputs :16
Number of outputs : 16 transistor NPN
Output capacity : 4×0.3A and 12×0.1A
Digital I/Os (max.) : 384 (192 / 192)
Processing speed : 0.32µs/step (basic instruction)
Operating voltage range : 24V DC (±10%)
