उच्च निष्पादन इग्निशन सिस्टम
Created with Pixso.

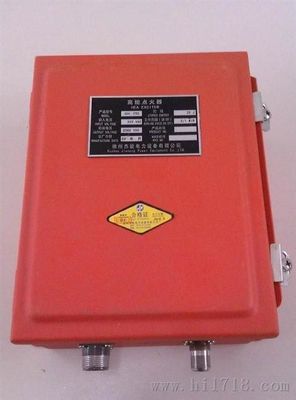

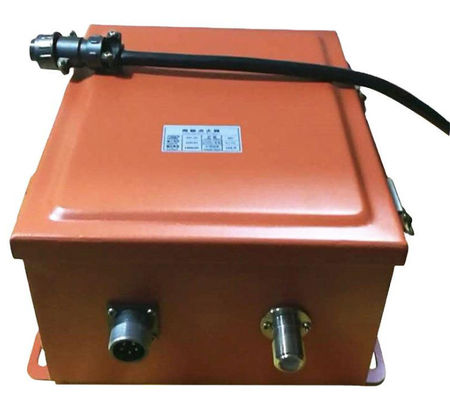

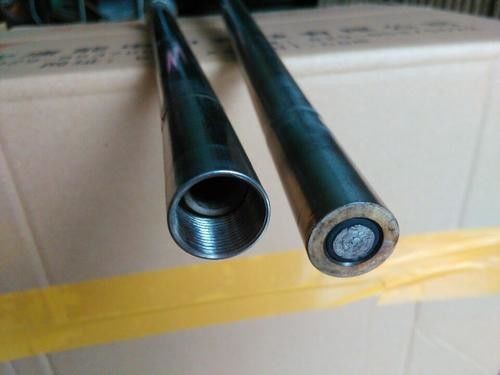

XDH श्रृंखला XDH-20C उच्च ऊर्जा इग्निशन डिवाइस AC 220V XDZ-1 इग्निट रॉड स्पार्क रॉड हाई वोल्टेज केबल

XDH श्रृंखला XDH-20C उच्च ऊर्जा इग्निशन डिवाइस AC 220V XDZ-1 इग्निट रॉड स्पार्क रॉड हाई वोल्टेज केबल

ब्रांड नाम: OEM
मॉडल संख्या: XDH-20
एमओक्यू: एक सेट
भुगतान की शर्तें: टी / टी
आपूर्ति करने की क्षमता: 200
विस्तृत जानकारी
उत्पत्ति के प्लेस:
चीन
वोल्टेज:
220V ± 10% 50 / 60HZ
ऊर्जा:
20 जे
स्पार्क फ़्रीक्वेंसी:
12-14 बार / एस
ढांचे का आकर:
300 * 200 * 120
इग्निशन रॉड:
एम 18 * 1.0 एम 18 * 1.5 एम 27 * 1.5
तापमान:
1300 ℃
रॉड दीया:
Φ16 Φ18
पैकेजिंग विवरण:
लकड़ी के बक्से पैकिंग
आपूर्ति की क्षमता:
200
प्रमुखता देना:

XDH-20C उच्च ऊर्जा प्रज्वलन उपकरण

,

एसी 220 वी उच्च ऊर्जा प्रज्वलन यंत्र

,

उच्च ऊर्जा प्रज्वलन मॉड्यूल

उत्पाद का वर्णन

Portable High Performance Ignition System Hea Box for XDH High-Energy Ignition Device Assembly DC 12V, AC 220V



1,Product Description: use from ignition cable input voltage DC discharge in high energy electric spark forming head

2,Technical advantages and honor- Low ignition voltage;- Good temperature resistance;- Safety and reliability, strong ability to resist pollution


Applications:


    As XDH high-energy ignition device assembly.



Specifications:

Brief introduction

1,Product Description: use from ignition cable input voltage DC discharge in high energy electric spark forming head.
2,Technical advantages and honor
- Low ignition voltage;
- Good temperature resistance;
- Safety and reliability,  strong ability to resist pollution

Applications:

As XDH high-energy ignition device assembly.

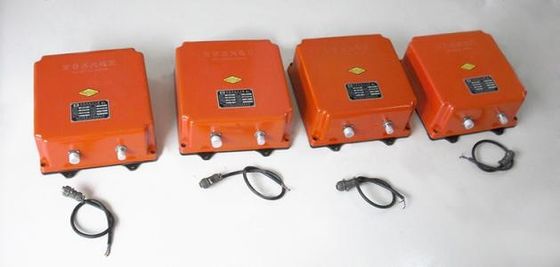

Product model and series

1. Product series

Sr.

Model

Description

1

XDH-1G

High pressure gap ignitor

2

XDH-2Z

DC charging portable ignition

3

XDH-6B

explosion-proof high-energy ignition

4

XDH-6L

Portable high-energy ignition

5

XDH-12T

Portable high-energy ignition

6

XDH-20B

explosion-proof high-energy ignition

7

XDH-20C

high-energy ignition

8

XDH-20L

high-energy ignition

9

XDH-50

high-energy ignition

【Note】As the series of products still cannot meet the requirements of users,  according to the demand of design.



1. basic configuration:(leave)

2. Performance parameters



Various types of igniter performance:

Parameter name

Unit

Data

NDH-2Z
ignition

NDH-6 series ignition

XDH- 20 series ignition

XDH-50
ignition

Energy storage

J

2

10

20

50

Working voltage

V

DC12

AC220

Output voltage

VDC



2500±5%

Spark frequency

(Times / sec)

1~3

2~10 Adjustable

7~17

2~10  Adjustable

Duty cycle (on / off)

S

30/60

120/60

300/60

120/60



3. Outline and mounting dimensions   pls contact to confirm
