उत्पत्ति के प्लेस: | चीन |
ब्रांड नाम: | DYLINK |
मॉडल संख्या: | SW1801D |
न्यूनतम आदेश मात्रा: | एक सेट |
---|---|
पैकेजिंग विवरण: | लकड़ी के बक्से पैकिंग |
प्रसव के समय: | अनुबंध पर हस्ताक्षर करने के 15 दिन बाद |
भुगतान शर्तें: | टी / टी |
आपूर्ति की क्षमता: | 1000sets |
विशेष विवरण: | SW1801D | कंप्यूटर कनेक्शन: | 8 |
---|---|---|---|
मेजबान कनेक्टर्स: | 8x डीवीआई महिला x 8x यूएसबी टाइप बी महिला | अधिकतम डिजिटल संकल्प: | 1920 x 1200 @ 60 हर्ट्ज |
तापमान रेंज आपरेट करना: | -40 ~ + 55 ° C | बिजली की आपूर्ति: | DC12V / 1 ए |
आयाम (W x H x D): | 438 मिमी X 153 मिमी X 44.5 मिमी | ||
हाई लाइट: | महिला डीवीआई केवीएम स्विच,8 पोर्ट डीवीआई केवीएम स्विच,डीवीआई रैक माउंट केवीएम स्विच |

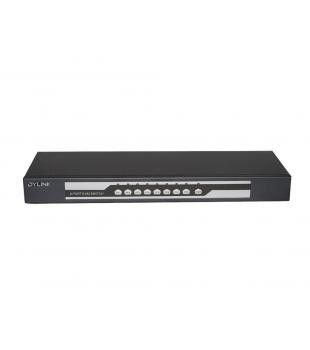

Description: The DYLINK® SW1801D 8 Port DVI KVM Switch allows quick switch between 8 computers from a single USB keyboard and mouse. The SW1801D setup is easy,simply plug the cables into their appropriate ports . There is no software to configure, no installations, and no incompatibility issues. In addition, the SW1801D allowing it to work on multiple OS platforms including:Windows, Linux, and Mac.
Features
■ Share keyboard, mouse, and DVI display between eight DVI-equipped computers
■ Full plug-and-play support with USB keyboards and mouses.
■ Supports a maximum resolution of 1920x1200@60Hz
■ Hotkey and push-button switching
■ OS independent - No driver or software required
■ Supports DDC2B for monitor detection
■ Multiplatform support :Windows, Linux and Mac
■ HP,DELL,IBM mouse and keyboard compatable
Package Includes
• 1 x DVI KVM Switcher
• 1 x Power Adapter
• 1 x User’s Manual
Specifications
Specifications | SW1801D |
Computer Connections | 8 |

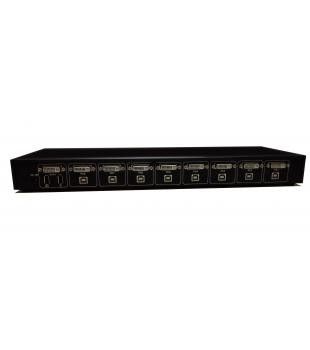

Host Connectors | 8x DVI Female;8x USB Type B female; |
Console Interfaces |
1x DVI Female; 2x USB Type A female; |
DVI Specification | V1.0 |
Maximum Digital Resolutions | 1920 x 1200@60Hz |
LED Indicators | 8 |
Port Selection | Push Button and Hotkeys |
Power Supply | DC12V/1A |
Operating TemperatureRange | -40 ~ +55°C |
Dimensions(W x H x D) | 438mm X 153mm X 44.5mm |
This product is also named as DVI Switch,or DVI KVM Switch,or DVI USB KVM Switch,and so on.
